RENTAL

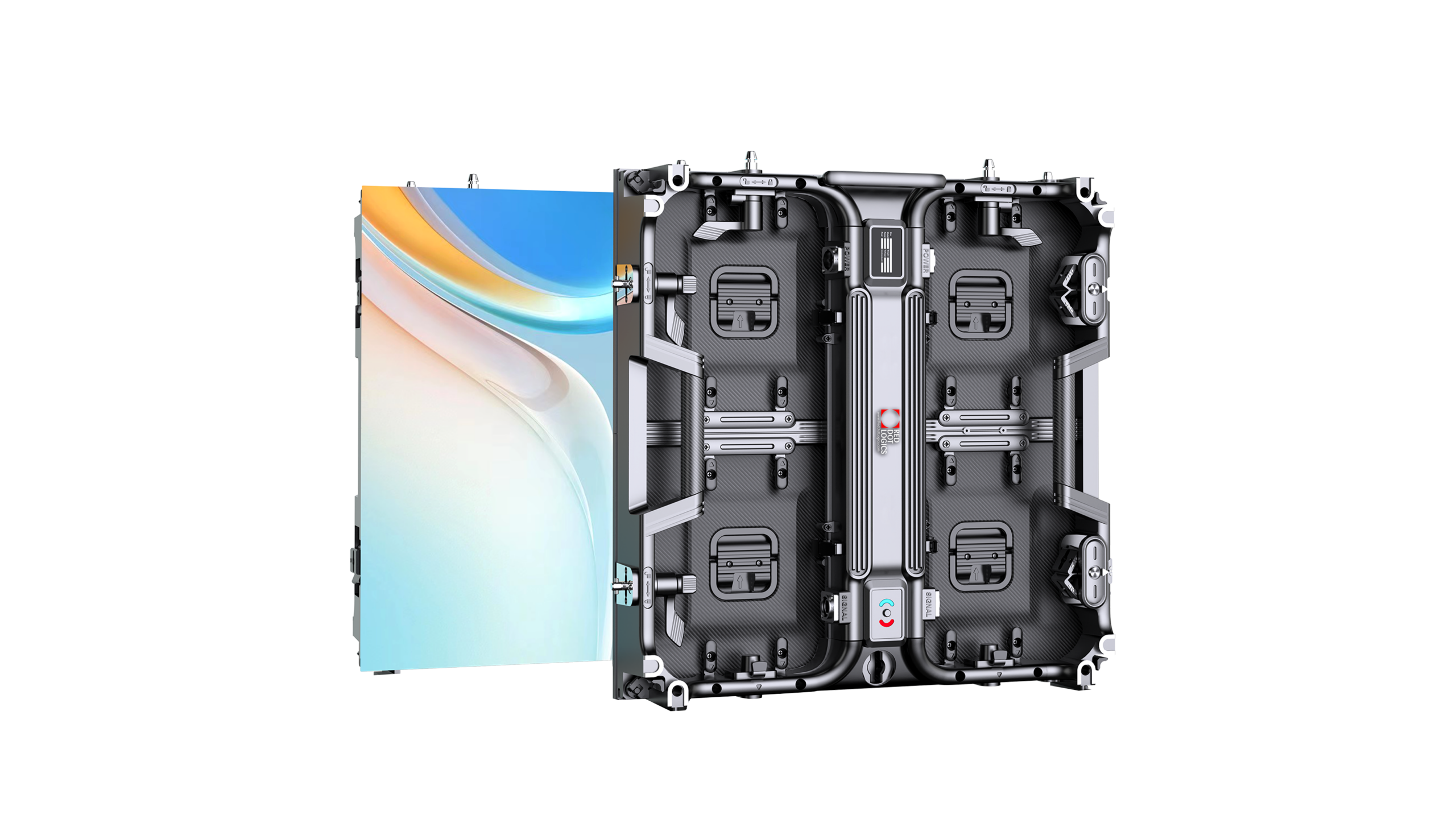

RDL iA SERIES
INDOOR&OUTDOOR LED DISPLAY
RDL iA
SERIES
iA & OA series is star product. Its unique and user-friendly product design has won the German iF Design Award. iA & OA series is suitable for stage, product launch, wedding, exhibition, XR virtual shooting …
HIGHLIGHT
FEATURES

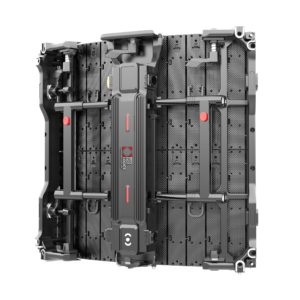

- Die-casting aluminum curve lock
- Stainless vertical fast lock

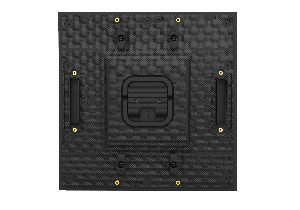

- Hidden module handle
- High integrated power supply box
- Universal cabinet for indoor and outdoor modules

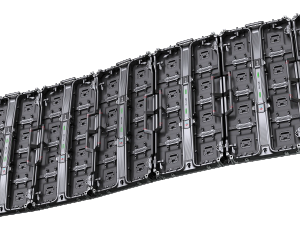

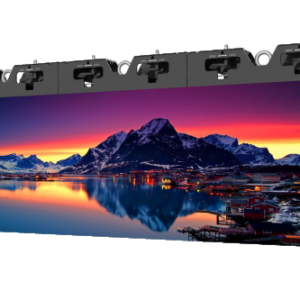

CURVE
CUBE AND CORNER

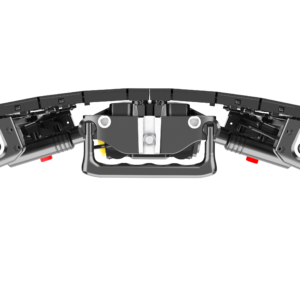

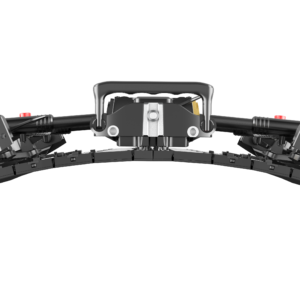

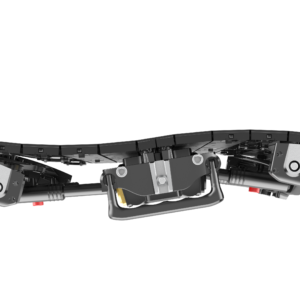

Patented curve lock made of die-casting aluminum, it’s the highest precision curve lock on the market which can make smooth curve. The lock is 0°, ±3°, ±6° adjustable.

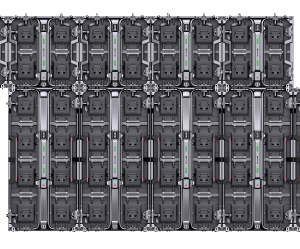

iA & OA cabinets are available as an option to create cube-shaped or L-shaped, as well as narrow smooth corner video wall.

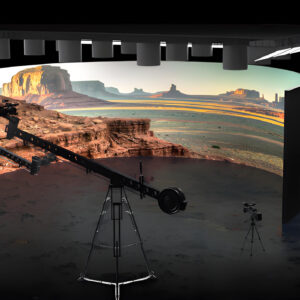

VIRTUAL PRODUCTION
XR SERIES
LED lamps featuring high contrast and over 99% coverage of P3 color gamut are perfect for creating live action scenes for film making industry and other usages like LED cinemas requiring vivid display of realistic scenes.

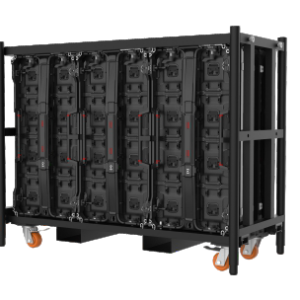

TOURING CART FOR FAST HANGING

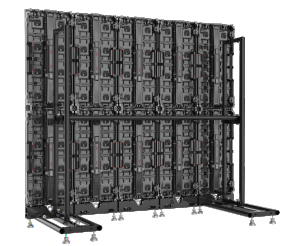

BASE BAR & HANGING BAR 2 IN 1 DESIGN
RDL iA
FLEX
-
One cabinet can make an “S” Shape
-

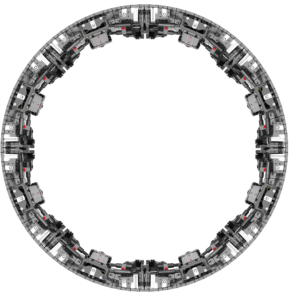

Single cabinet can curve up to 45° maximum, two cabinets can reach 90° curve. Only 8 cabinets can be assembled into a cylinder of 1.2m diameter.
COMPATIBILITY
RDL iA & iA-flex cabinets are fully compatible. Combining both LED cabinets in one single wall, you can create stunning designs.
RDL iA SPECIFICATION
| Item | Indoor iA1.5 |
Indoor iA1.9 |
Indoor iA2.6 |
Indoor iA3.9 |
Outdoor OA2.9 |
Outdoor OA3.9 |
|---|---|---|---|---|---|---|
| LED Type |
SMD1212 black |
SMD1515/ 1010black |
SMD1515/ 1010black |
SMD1515 black |
SMD1415 (white/black) |
SMD1921 (white/black) |
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.6 | 3.9 | 2.9 | 3.9 |

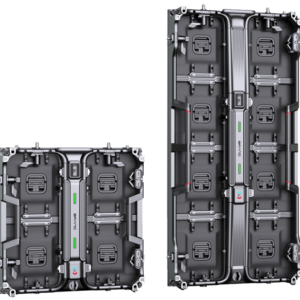

| Panel Dimensions (W×H)/(mm) |
500×500/ 500×1000 |
500×500/ 500×1000 |
500×500/ 500×1000 |
500×500/ 500×1000 |
500×500/ 500×1000 |
500×500/ 500×1000 |
| Pixel Per Panel |
320×320/ 320×640 |
256×256/ 256×512 |
192×192/ 192×384 |
128×128/ 128×256 |
168×168/ 168×336 |
128×128/ 128×256 |
| Panel Weight (kg) | 7.6/12.5 | 7.6/12.5 | 7.6/12.5 | 7.6/12.5 | 8/12.9 | 8/12.9 |
| Panel Material |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
| Module Dimensions (W×H)/(mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Curving(Concave&Convex) |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
| Brightness (nit) | 700–1000 | 700–1000 | 700–1000 | 700–1000 |
4000(black)/ 5000(white) |
4000(black)/ 5000(white) |
| Refresh Rate (Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Gray scale (bit) | 14 | 14 | 14 | 14 | 16 | 16 |
| Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Driving Type | 1/40 | 1/32 | 1/32 / 1/16 | 1/16 | 1/14 | 1/16 |
| AC Operating Voltage (V) | 100–240 | 100–240 | 100–240 | 100–240 | 100–240 | 100–240 |
| Max. Power Consumption (W/m²) | 600 | 600 | 600 | 600 | 750 | 750 |
| Avg. Power Consumption (W/m²) | 200 | 200 | 200 | 200 | 300 | 300 |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP66 | IP66 |
| LED Lifetime (H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Max hanging (m) | 10 | 10 | 10 | 10 | 10 | 10 |
| Max stacking(m) | 10 | 10 | 10 | 10 | 10 | 10 |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Control system | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH | |||||
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH | |||||
| Certificate | ETL,FCC,CE-EMC,CE-LVD,ROHS | |||||
RDL iA AND iA-FLEX SPECIFICATION
| Item | Indoor XR iA1.9 |
Indoor XR iA2.6 |
Indoor iA-flex 1.9 |
Indoor iA-flex 2.6 |
Outdoor OA-flex 2.9 |
Outdoor OA-flex 3.9 |
|---|---|---|---|---|---|---|
| LED Type |
SMD 4in1 black |
SMD2424 black |
SMD1010 black |
SMD1515 black |
SMD1415 (white/black) |
SMD1921 (white/black) |
| Pixel Pitch (mm) | 1.9 | 2.6 | 1.9 | 2.6 | 2.9 | 3.9 |
| Panel Dimensions (W×H)/(mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Pixel Per Panel | 256×256 | 192×192 | 256×256 | 192×192 | 168×168 | 128×128 |
| Panel Weight (kg) | 7.6 | 7.6 | 8 | 8 | 9 | 9 |
| Panel Material |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
| Module Dimensions (W×H)/(mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Curving(Concave&Convex) |
Concave 3°,6° /Convex 3°,6° |
Concave 3°,6° /Convex 3°,6° |
Concave22.5°– Convex 22.5° |
Concave22.5°– Convex 22.5° |
Concave22.5°– Convex 22.5° |
Concave22.5°– Convex 22.5° |
| Brightness (nit) | 1200 | 1200 | 700–1000 | 700–1000 |
4000(black)/ 5000(white) |
4000(black)/ 5000(white) |
| Refresh Rate (Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Gray scale (bit) | 22 | 22 | 14 | 14 | 16 | 16 |
| Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Driving Type | 1/16 | 1/16 | 1/32 | 1/32 / 1/16 | 1/14 | 1/16 |
| AC Operating Voltage (V) | 100–240 | 100–240 | 100–240 | 100–240 | 100–240 | 100–240 |
| Max. Power Consumption (W/m²) | 600 | 600 | 600 | 600 | 750 | 750 |
| Avg. Power Consumption (W/m²) | 200 | 200 | 200 | 200 | 300 | 300 |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP66 | IP66 |
| LED Lifetime (H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Max hanging (m) | 10 | 10 | 5 | 5 | 5 | 5 |
| Max stacking(m) | 10 | 10 | 5 | 5 | 5 | 5 |
| Serviceability | Front/Rear | Front/Rear | Rear | Rear | Rear | Rear |
| Control system |
NovaStar Brompton |
NovaStar Brompton |
NovaStar | NovaStar | NovaStar | NovaStar |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH | |||||
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH | |||||
| Certificate | ETL,FCC,CE-EMC,CE-LVD,ROHS | |||||
