RDL iFPP Series

INDOOR 16:9 Ratio LED DISPLAY

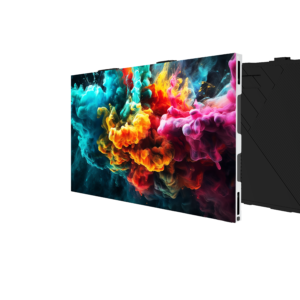

RDL iFPP Series cabinets

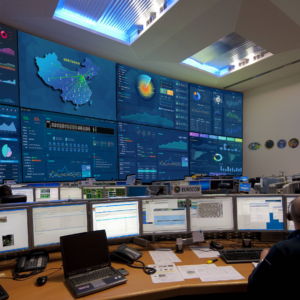

RDL iFPP Series indoor installation

Fine Pixel Pitch LED Screens

Precision, Performance & Seamless Integration

Installing a fine-pitch LED video wall in high-precision environments—such as corporate boardrooms, broadcast studios, and control rooms—has never been easier. iFPP Series by Red Dot Logics are expertly designed to meet the demands of permanent video installations, delivering a perfect blend of adaptability, effortless installation, and cost-efficient maintenance.

With a sleek, modular design and unmatched visual performance, iFPP Series panels provide crystal-clear resolution, superior color accuracy, and seamless integration into any professional setting. Engineered for reliability, these panels ensure long-term durability while maintaining an elegant, low-profile presence.

Experience uncomplicated installation, low-maintenance operation, and high-end performance—all in one powerful display solution.

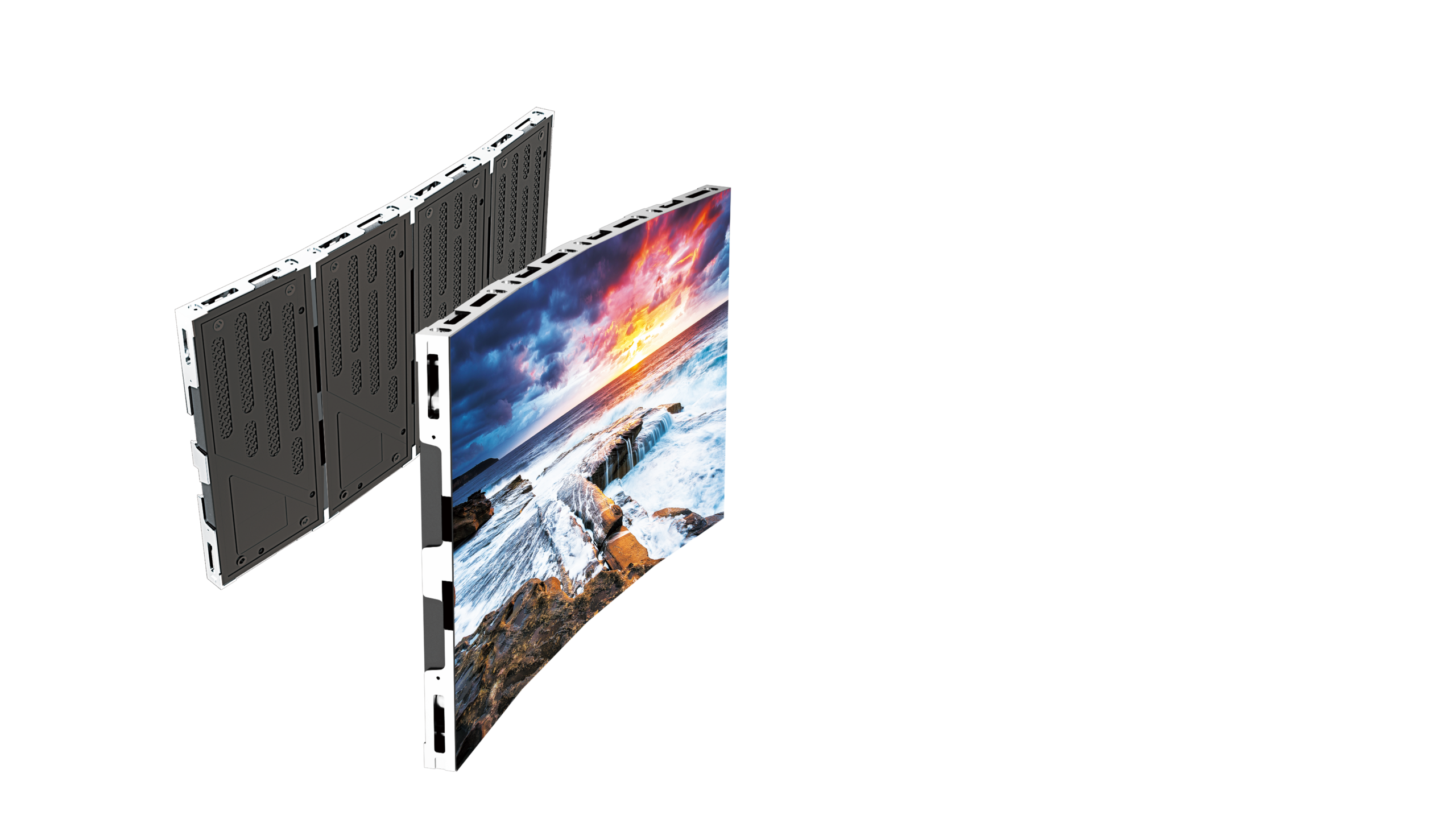

RDL iFPP Series curved panel

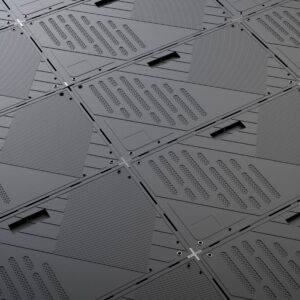

RDL iFPP Series modular cabinets

  • HDR technology

    Brighter Highlights, Deeper Shadows, Unmatched Reality

  • Slim-line panel design

    Designed to Impress, Incredibly Slick, curvable

  • Custom Mounting system

    Versatile & Adaptive Mounting, Precision Positioning, Precision-Fit

  • Front-Access Design

    Simplified Maintenance, Minimal Downtime, Full Front Service

  • Modular Architecture

    Seamless Expansion, Precision Fit, Fully Modular

  • Perfectly Scaled for 16:9

    Ideal for Broadcast & Media, Native 4K Resolution

  • High-Density Pixel Grid

    0.7, 0.9, 1.2, 1.5, 1.8, 2.5. Rich Contrast and color

  • Years of Reliable Performance

    Designed to Save Energy, Unmatched Stability

Highlight
Features

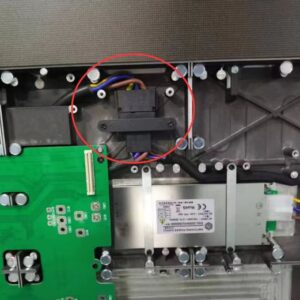

  • Wireless connector to carry power & data
  • Simple yet powerful Hub board design
  • Optional built-in backup receiving card capacity
  • Slim integrated power supply with optional backup
  • High precision locks for seamless installation

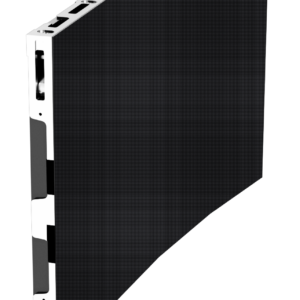

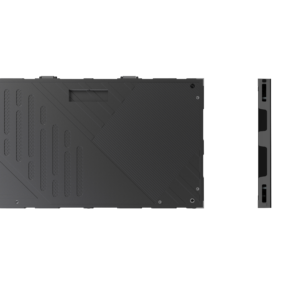

RDL iFPP Series slim cabinet profile

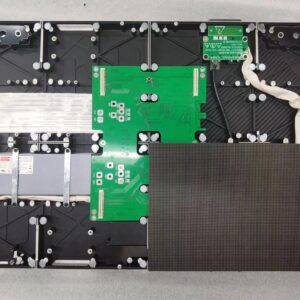

RDL iFPP Series hub board and power layout

RDL iFPP Series

Fully Front Serviceable LED Screen series in 16:9 Golden Ratio

163" 16:9 LED wall 163"
136" 16:9 LED wall 136"
109" 16:9 LED wall 109"
82" 16:9 LED wall 82"

Information

  • Next-Gen Visuals with Flip Chip Technology

    Optional Full Flip Chip design enhances brightness, contrast, and energy efficiency—delivering a striking new visual experience.

  • Lightweight & Power-Efficient

    The slim and lightweight panel design offers effortless handling and installation, while reducing energy consumption by up to 30%.

  • Perfect 16:9 Ratio for Seamless Resolutions

    Designed for a true 16:9 aspect ratio, ideal for seamless splicing into standard 2K, 4K, or 8K resolutions—ensuring pixel-perfect visuals.

  • Ultra-Slim Wall Mounting System

    Features a streamlined wall-mount frame, engineered for quick, clean, and space-saving installations.

  • Ceiling Suspension Ready

    Now includes hanging bars for overhead mounting, making it easy to suspend from ceilings in flexible installation scenarios.

  • Comprehensive Protection & Visual Comfort

    Built with moisture-proof, anti-collision, anti-static, dust-free, and anti-oxidation features—plus anti-blue light protection for safe & comfortable viewing.

  • Redundant Power & Signal for Critical Use (Optional)

    Equipped with dual receiving cards and dual power supply options to ensure uninterrupted performance in mission-critical environments.

LED Screen Parameters

Item RDL-FPP0.9 RDL-FPP1.25 RDL-FPP1.56 RDL-FPP1.875 RDL-FPP2.5
Operating Environment Indoor Indoor Indoor Indoor Indoor
LED Type Mini LED SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1
Pixel Pitch (mm) 0.9375 1.25 1.5625 1.875 2.5
Pixel Density (pixels/m²) 1,137,778 640,000 409,600 284,444 230,400
Pixel Configuration 4R4G4B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size (mm) 150×168.75 150×168.75 150×168.75 300×168.75 150×337.5
Module Resolution 160×180 120×135 96×108 160×90 60×135
Cabinet Size (mm) 600×337.5 600×337.5 600×337.5 600×337.5 600×337.5
Cabinet Resolution (W×H) 640×360 480×270 384×216 320×180 240×135
Weight (lb/cabinet) 15.5 lb 15.5 lb 15.5 lb 15.5 lb 15.5 lb
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Maintenance Way Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
White Balance Brightness (nit) 700–1000 700–1000 700–1000 700–1000 700–1000
Horizontal / Vertical Viewing Angle 160/160 160/160 160/160 160/160 160/160
Gray Scale 14–16 14–16 14–16 14–16 14–16
Colour Temp 3200–9300 3200–9300 3200–9300 3200–9300 3200–9300
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
Storage Temp -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C
Operation Temp -20°C ~ +50°C -20°C ~ +50°C -20°C ~ +50°C -20°C ~ +50°C -20°C ~ +50°C
Operation Humidity 5%–95% RH 5%–95% RH 5%–95% RH 5%–95% RH 5%–95% RH
Input Signal DVI/VGA, RGBHV Composite, S-VIDEO, YPbPr (HDTV)
Max Power Consumption (W/m²) 350 350 350 350 350
Avg. Power Consumption (W/m²) 100 100 100 100 100
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Scan 1/30 1/27 1/27 1/45 1/27
Certification CE FCC ETL CCC CE FCC ETL CCC CE FCC ETL CCC CE FCC ETL CCC CE FCC ETL CCC
